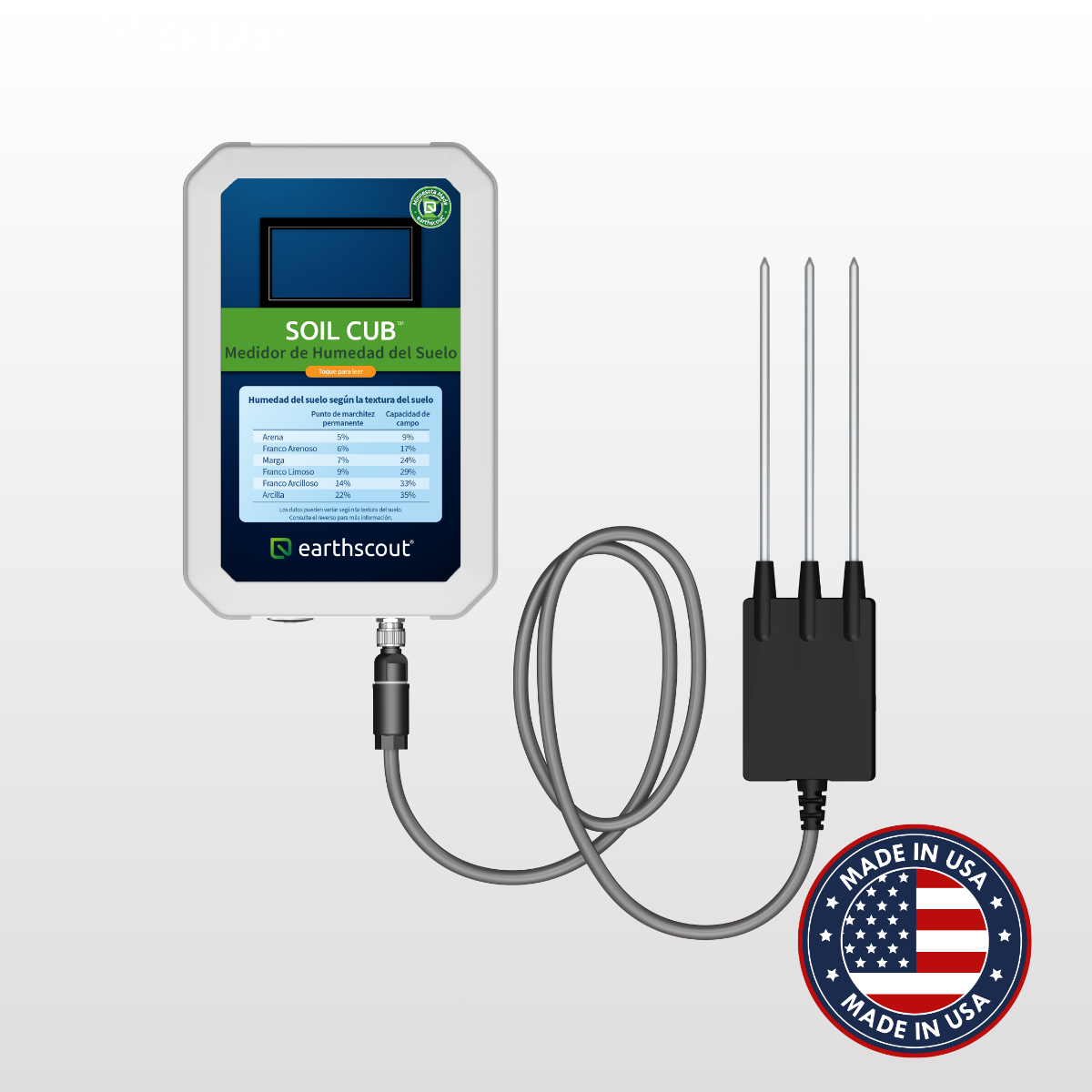

SOIL CUB – Soil Moisture Meter with digital EarthScout TDR SDI-12 Soil Moisture Sensor is loaded with great benefits:
Just insert the EarthScout TDR SDI-12 Soil Moisture Sensor in the soil and tap the box for an instant reading of soil moisture, soil temperature, soil EC, air temperature, and air humidity
Easy to use
No assembly required
Digital, Time Domain Reflectometer (TDR) SDI-12 soil moisture sensor is research-grade and considered the gold-standard for precision and accuracy by scientists at leading universities
EarthScout TDR SDI-12 sensor is stainless steel, corrosion resistant, commercial-grade, extremely durable, and does not require calibration
Portable
Water resistant case
Requires 6 AA batteries
1 year limited warranty
-
Time Domain Reflectometry (TDR) that provides highly accurate volumetric water content (VWC) and bulk soil electrical conductivity (EC) measurements in soils and other porous media.
Key Advantages:
High-Resolution TDR Technology: Delivers 5ps resolution for precise water content measurements (up to 1.00 m³/m³), using advanced waveform digitizing and analyzing firmware for precise time-domain analysis.
Fast Performance: Ultra-fast rise time (150ps), rapid response (<0.25 sec), and low power consumption (0.09 J per reading) make it ideal for both field and laboratory use.
Robust and Reliable: VWC readings are unaffected by bulk electrical conductivity (under 1.8 dS/m) and soil compaction, eliminating the need for soil-specific calibration.
Measurement Functions and Performance:
Volumetric Water Content
Reading: 0% to 100%
VWC Accuracy: ±2%
Resolution: 0.1
Medium Bulk Electrical Conductivity (EC):
Reading: 0 to 2000 µS/cm
Accuracy: (0-1000µS/cm): ±25 µS/cm
Accuracy: (1000-2000 µS/cm): ±2.5%
Resolution: 1 µS/cm
Medium Temperature:
Reading: -40° to +55 degrees Celsius
Accuracy: (+5C to +35C): ±0.25C
Accuracy: (-15C to +55C): ±0.5
Resolution: 0.1C
Pore Water EC (Hilhorst Model):
Reading: 0 to 55,000 µS/cm
Applications:
Agriculture, Turf, Landscaping, Orchards, Greenhouses, and Nurseries
Gold Standard VWC Reference
Portable for Both Field & Laboratory Research
-
Weight & Dimensions:
2 lbs.
Case: 7.5″L x 5″W x 1.25″D
EarthScout TDR SDI-12 Soil Moisture Sensor: 8″L x 2″W x 0.5″D
Electronics Case:
Type 4X polycarbonate water & corrosion resistant (non-submersible), UV rated case.
All fittings and hardware are water and corrosion resistant.
Battery:
Requires 6 AA batteries
TDR Soil Moisture Sensor:
Measures soil moisture, soil temperature, and soil EC
Sensor Dimensions: 8″L x 2″W x 0.5″D
Durable, research grade sensors for use in harsh environments
Cables are waterproof sealed for outdoor use
Ground level sensors protected with abrasion and rodent resistant braiding
Air Temperature & Humidity Sensor:
Measures ambient air temperature
Measures relative humidity
-
Soil Cub Instruction Manual: Learn how to use the Soil Cub Meter: Soil Cub Instruction Manual English & Soil Cub Instruction Manual Spanish
More Questions?
Visit the EarthScout YouTube Page for videos on how to use the Soil Cub Meter or, contact us at 1 (877) 443-7632. -
Register Your Soil Cub and Activate Your Warranty HERE
What Is Covered By This Warranty?
EarthScout warrants the EarthScout-branded product and the EarthScout-branded accessories contained in the original packaging (“EarthScout Product”) against defects in materials and workmanship when used normally in accordance with EarthScout’s published guidelines, and a period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser (“Warranty Period”). EarthScout’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.What Is Not Covered By This Warranty?
This Warranty does not apply to any non-EarthScout branded hardware products or any software, even if packaged or sold with EarthScout hardware. Manufacturers, suppliers, or publishers, other than EarthScout, may provide their own warranties to you – please contact them for further information. Software distributed by EarthScout with or without the EarthScout brand (including, but not limited to system software) is not covered by this Warranty. Please refer to the licensing agreement accompanying the software for details of your rights with respect to its use. EarthScout does not warrant that the operation of the EarthScout Product will be uninterrupted or error-free. EarthScout is not responsible for damage arising from failure to follow instructions relating to the EarthScout Product’s use.EarthScout Purchase Terms
When you purchase the Soil Cub – Soil Moisture Meter there is a 1 year warranty if the product is registered with EarthScout within 45 days of purchase.Return Policy
EarthScout Soil Cub 5-In-1 Soil Moisture Meter has a 30 day return policy. The return policy is void if the plastic shrink wrap around any of the sensors are torn, removed, or there are signs of product use. The customer will be responsible for return shipping costs.
