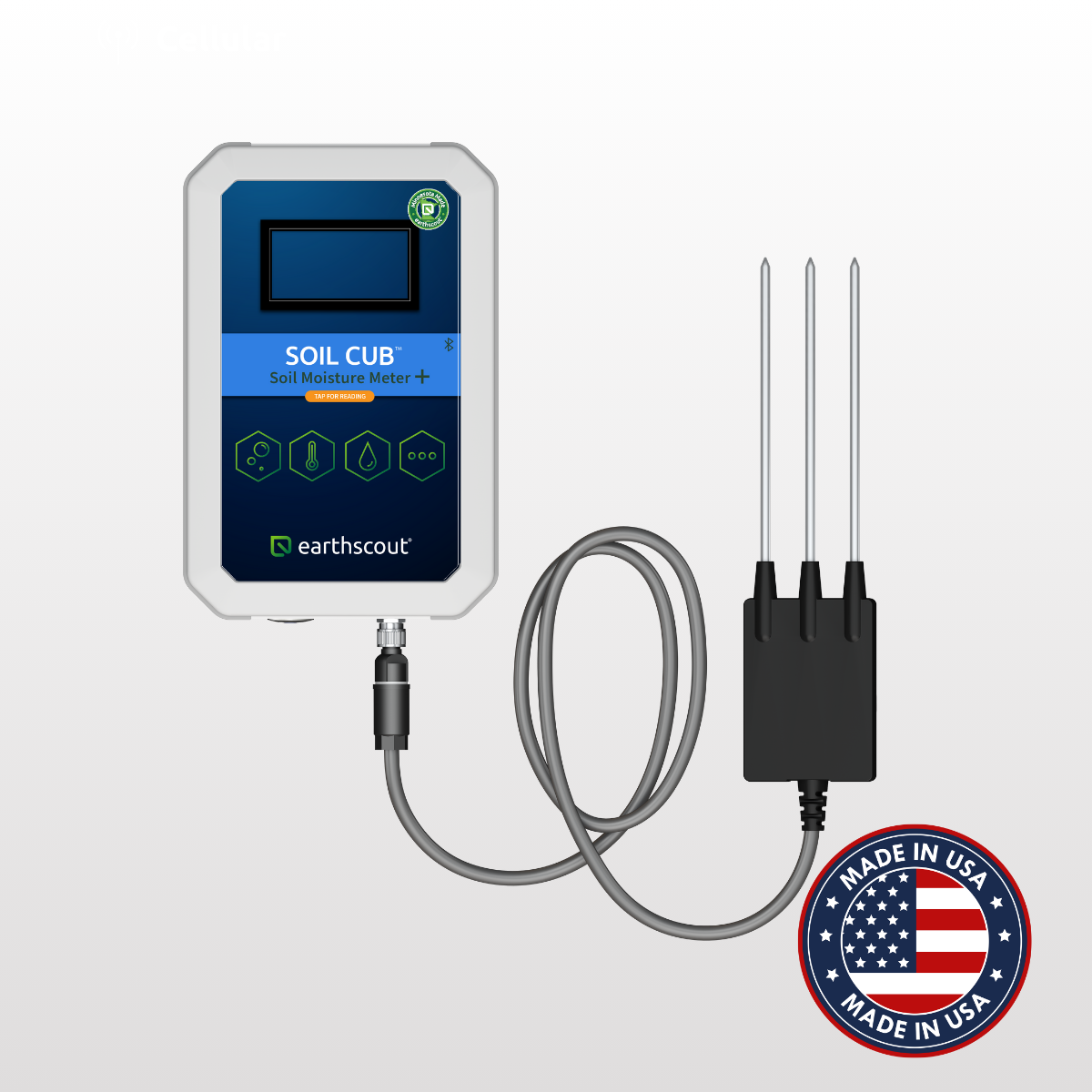

Soil Cub +

SOIL CUB + has Bluetooth connectivity and digital TDR Soil Moisture Sensor is loaded with great benefits:

• ‍Insert the TDR  Soil Moisture Sensor in the soil and tap the box or screen in the Soil Cub app for an instant reading of soil moisture, soil temperature, soil EC, air temperature, and air humidity

• Bluetooth pairing with the Soil Cub App lets you store, review, and manage all data collected in the field

• Each data point automatically tagged with GPS coordinates when connected to the Soil Cub App

• Easily export data from the Soil Cub App for additional analysis or reporting

• Your mobile device must have the following version or higher for the Soil Cub App to run smoothly:

• Android v8.0 version and higher
  iPhone: iOS 16.7.12 version and higher

• ‍No data or subscription fee to use the Meter or the Soil Cub App

• No assembly required

• Digital, Time Domain Reflectometer (TDR) SDI-12 soil moisture sensor is research-grade and considered the gold-standard for precision and accuracy by scientists at leading universities

• EarthScout TDR SDI-12 sensor is stainless steel, corrosion resistant, commercial-grade, extremely durable, and does not require calibration

• Portable

• Water resistant case

• Requires 6 AA batteries

• 1 year limited warranty

The EarthScout TDR (SDI-12) Soil Moisture Sensor is a precision Time Domain Reflectometer (TDR) that provides highly accurate volumetric water content (VWC) measurements in soils and other porous media. Trusted by leading researchers, it offers the same TDR technology found in high-end instruments that cost thousands of dollars more. Compact yet powerful, it integrates precision TDR components and a 15 cm waveguide within a small enclosure.

Key Advantages:

• High-Resolution TDR Technology: Delivers 5ps resolution for precise water content measurements (up to 1.00 m³/m³), using advanced waveform digitizing and analyzing firmware for precise time-domain analysis.

• Improved Sensitivity: Direct coupling of the TDR function to the waveguide eliminates coax cables, enhancing bandwidth, resolution, and measurement sensitivity.

• Fast Performance: Ultra-fast rise time (150ps), rapid response (<0.25 sec), and low power consumption (0.09 J per reading) make it ideal for both field and laboratory use.

• Robust and Reliable: VWC readings are unaffected by bulk electrical conductivity (under 1.8 dS/m) and soil compaction, eliminating the need for soil-specific calibration.

• Durable and Energy-Efficient: Low sleep current (<10 µA) supports long battery life.

Key Features:

• Waveform Digitizing TDR with 5ps Resolution

• Measures Water Content: 0% to 100% VWC

• Reads Bulk EC: 0 to 2000 µS/cm

• Accurate Soil Temperature: ±0.25°C

• Supports Time Domain Waveform Download

• Ultra-Fast Incident Wave Rise Time: 150ps

• Fast Measurement Response: <0.25 sec

• Low Power Usage: 0.09 J per Reading

• SDI-12 Interface

Measurement Functions:

• Volumetric Water Content (VWC): 0% to 100%

• Medium Permittivity: 1 to 80

• Medium Bulk Electrical Conductivity (EC): 0 to 2000 µS/cm

• Medium Temperature: -40°C to +60°C

• Pore Water EC (Hilhorst Model): 0 to 55,000 µS/cm

Applications:

• Agriculture, Turf, Landscaping, Orchards, Greenhouses, and Nurseries

• High Credibility Data for Analysis

• Gold Standard VWC Reference

• Portable for Both Field & Laboratory Research

The EarthScout TDR Soil Moisture Sensor is the gold standard for reliable, high-accuracy soil moisture measurement, offering fast, energy-efficient readings for a wide range of agricultural and scientific applications.

Weight & Dimensions:

• 2 lbs.

• Case: 7.5″L x 5″W x 1.25″D

• EarthScout TDR SDI-12 Soil Moisture Sensor: 8″L x 2″W x 0.5″D

Electronics Case:

• Type 4X polycarbonate water & corrosion resistant (non-submersible), UV rated case.

• All fittings and hardware are water and corrosion resistant.

Battery:

• Requires 6 AA batteries

TDR Soil Moisture Sensor:

• Measures soil moisture, soil temperature, and soil EC

• Sensor Dimensions: 8″L x 2″W x 0.5″D

• Durable, research grade sensors for use in harsh environments

• Cables are waterproof sealed for outdoor use

• Ground level sensors protected with abrasion and rodent resistant braiding

Air Temperature & Humidity Sensor:

• Measures ambient air temperature

• Measures relative humidity

Soil Cub Instruction Manual: Learn how to use the Soil Cub Meter: Soil Cub+ Instruction Manual English

More Questions?
Visit the EarthScout YouTube Page for videos on how to use the Soil Cub Meter + or, contact us at 1 (877) 443-7632.

Register Your Soil Cub and Activate Your Warranty HERE

What Is Covered By This Warranty?
EarthScout warrants the EarthScout-branded product and the EarthScout-branded accessories contained in the original packaging (“EarthScout Product”) against defects in materials and workmanship when used normally in accordance with EarthScout’s published guidelines, and a period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser (“Warranty Period”). EarthScout’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.

What Is Not Covered By This Warranty?
This Warranty does not apply to any non-EarthScout branded hardware products or any software, even if packaged or sold with EarthScout hardware. Manufacturers, suppliers, or publishers, other than EarthScout, may provide their own warranties to you – please contact them for further information. Software distributed by EarthScout with or without the EarthScout brand (including, but not limited to system software) is not covered by this Warranty. Please refer to the licensing agreement accompanying the software for details of your rights with respect to its use. EarthScout does not warrant that the operation of the EarthScout Product will be uninterrupted or error-free. EarthScout is not responsible for damage arising from failure to follow instructions relating to the EarthScout Product’s use.

EarthScout Purchase Terms
When you purchase the Soil Cub – Soil Moisture Meter there is a 1 year warranty if the product is registered with EarthScout within 45 days of purchase.

Return Policy

EarthScout Soil Cub 5-In-1 Soil Moisture Meter has a 30 day return policy. The return policy is void if the plastic shrink wrap around any of the sensors are torn, removed, or there are signs of product use. The customer will be responsible for return shipping costs.
