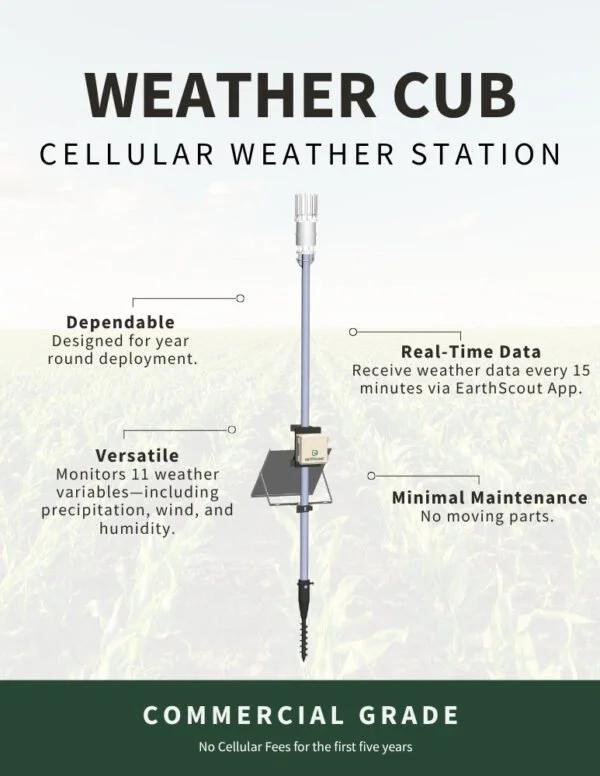

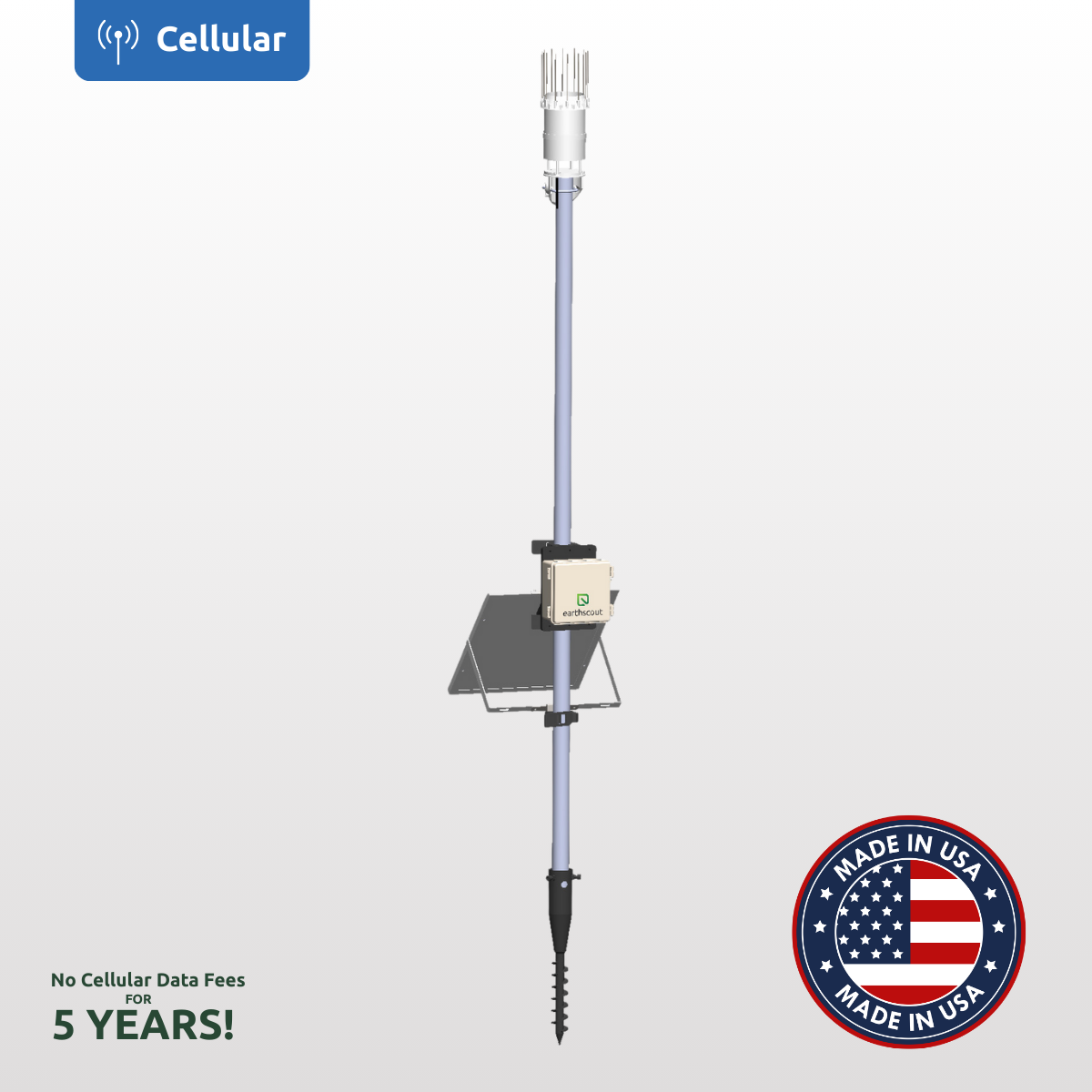

WeatherCub

WeatherCub 1 Cellular Weather Station is loaded with benefits:

• 5 Years of free data then $24.99/month

• 6′ tall installed

• Easy to install

• No moving parts

• All weather station data transmitted over a single wire

• Sends data to the EarthScout app

• Designed for continuous deployment in harsh climates

• No louvered radiation shield to attract bugs

• Accurate at low wind speeds because no moving parts will cause friction or fail

• Detects fine-scale wind speed variations with 0.01 m/s resolution

• Integrated weather station accelerometer detects if sensor is off-level

• Integrated spring acts as a rain gauge filter to keep out large particles but still allow enough water flow

• Data is stored inside the product as a backup in case of temporary outages

• 1-year limited warranty

• GPS

Monitors 11 weather variables:

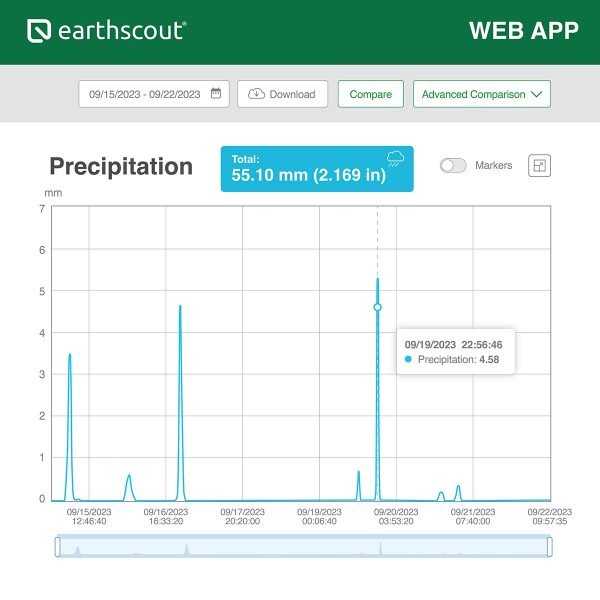

1. Precipitation (heavy & light rain, and heavy dew)

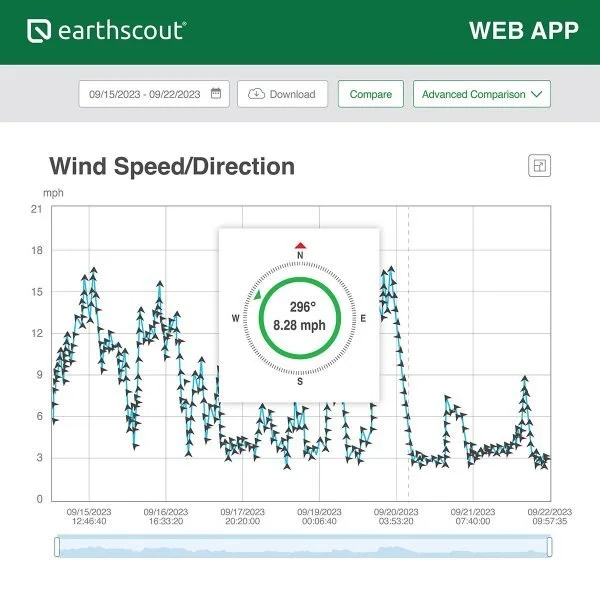

2. Wind Speed

3. Wind Direction

4. Maximum Wind Gust

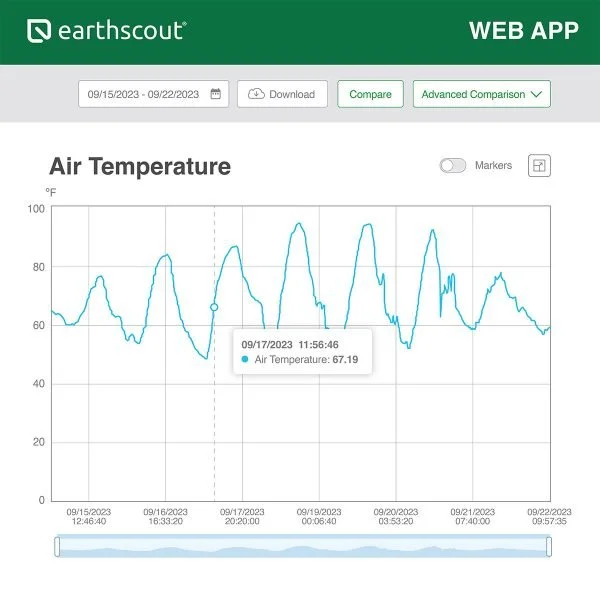

5. Air Temperature

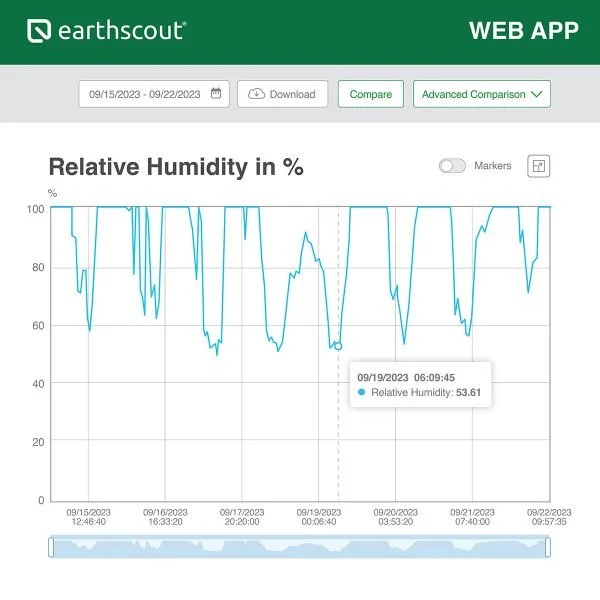

6. Relative Humidity

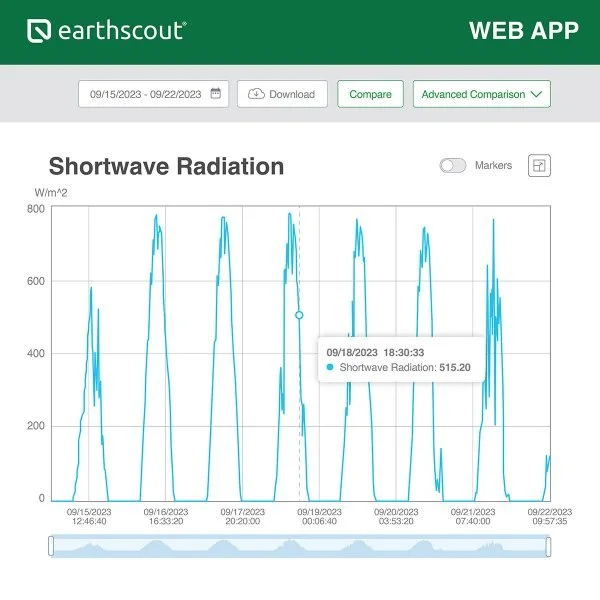

7. Solar Radiation

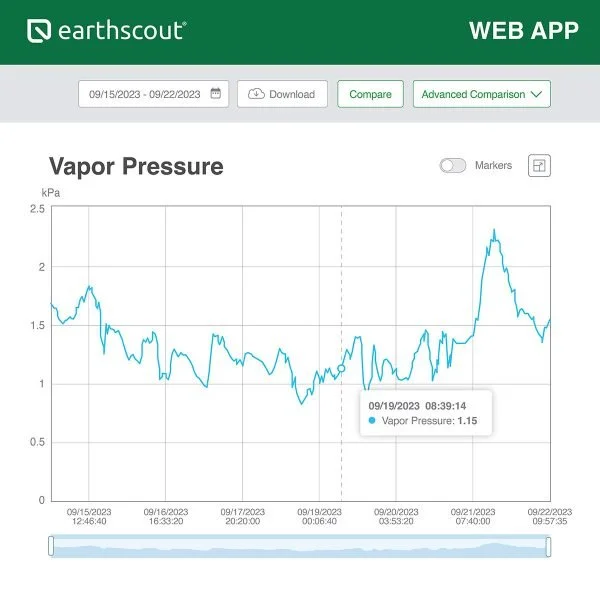

8. Vapor Pressure

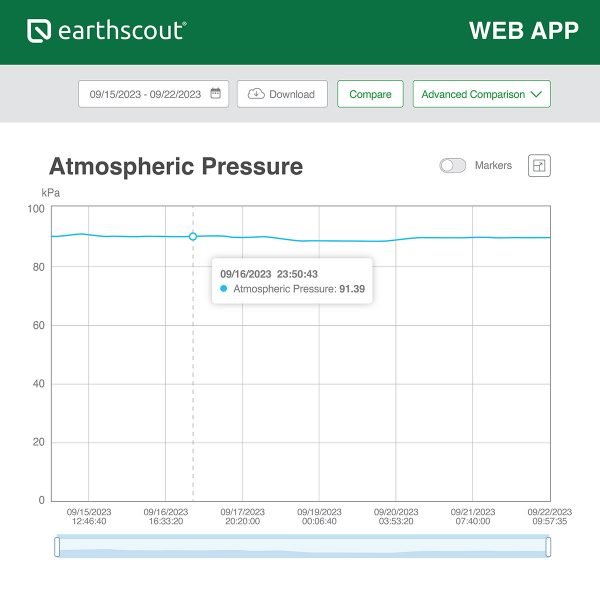

9. Barometric Pressure

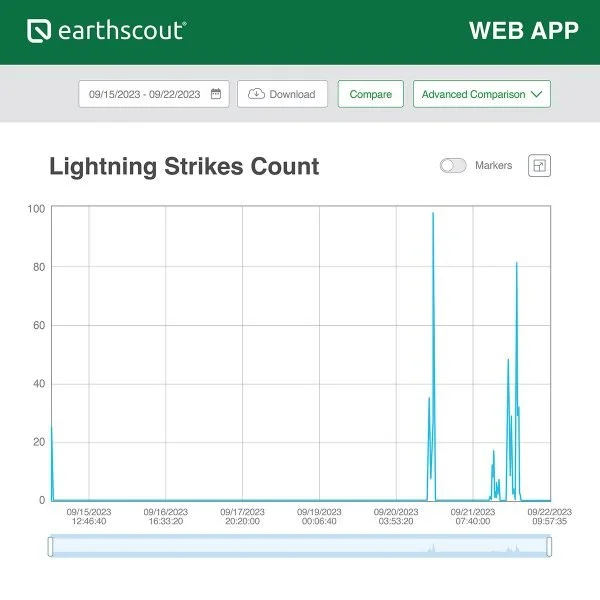

10. Lightning Strike Counter

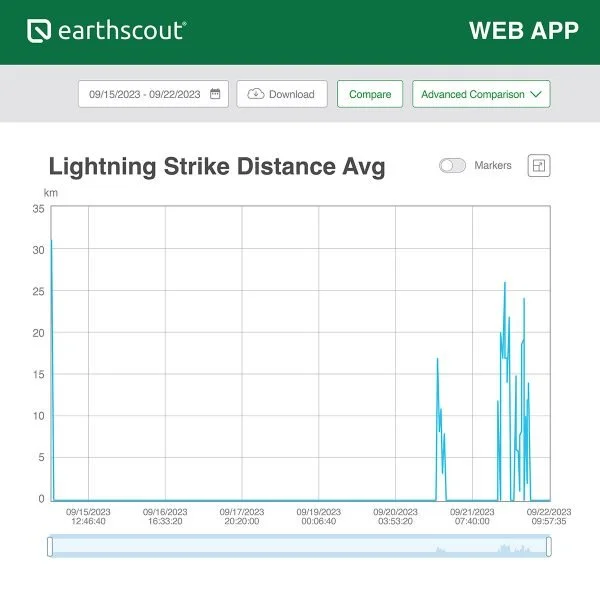

11. Lightning Strike Distance

Dimensions:

• 5.5ft. galvanized pole (1 5/8” diameter). Weight: 3.75 to 7.5 lbs.
  *optional accessory, not included

• When installed in ground, height above ground is 62”

Weather Sensor Array:

• Weight: 2lbs

• Dimensions: 15”H x 4.75”W x 4.75”D with bird spikes. 11”H without bird spikes.

• Mounts on top of pole (1.25” to 2” diameter) with provided clamp.  ½” wrench required for tightening.

• 5ft cable protected with stainless steel braid connects to side of enclosure via a 90 deg M8 plug.

Ground Screw:

• Weight: 5lbs

• Dimensions: 21.5” x 2.63” x 2.63”

• 1 5/8” diameter pole will insert 14.25” into ground screw.

• Ground screw inserts 18” into ground when installed.

• Includes 3 finger screws to secure and level pole.

• Screws into ground with provided rebar handle.

Solar Panel:

• 17W, 18V

• Weight: 2lbs

• Dimensions: 15.5” x 10.8” x 0.2”

• Comes with bracket to mount to pole at 45 degree angle.

• Comes with adjustable rubber clamps.

• 10” Cable protected with stainless steel braid and connects to side of enclosure via a 5.5 x 2.1mm adapter plug.

Enclosure:

• Type 4X polycarbonate water & corrosion resistant (non-submersible), UV rated case

• Dimensions: 12.25” x 8.75” x 5.25”

• Weight: (with components and bracket) approx. 20 lbs

• Comes with black powder coated steel bracket to mount on pole at 45 degree angle

• Comes with black powder coated aluminum clamps to mount to 1.5” to 1 5/8” pole

12V Battery:
*optional accessory, not included

• Located within enclosure.  Maintains longevity of use in the field.

• 12V 14AH sealed lead acid rechargeable battery.

• Rechargeable via the solar panel or optional external 120VAC to 15VDC adapter which connects to side of enclosure via a 5.5×2.1mm plug.

• Weight: 9.2lbs

• Dimensions: 3.7”H x 5.94”L x 3.86”W

Charge Controller:

• Located within enclosure on the inside of the door.  Regulates charging voltage to the 12V battery.

Each internal sensor has its own measurements and data processing schedules:

Pyranometer: Solar radiation is measured every 10 seconds and records instantaneous values. When it asks the sensor for solar radiation data, the sensor outputs the average of the instantaneous values since last query.

Anemometer: Wind speed and direction are measured every 10 seconds and it keeps a running average of the last 10 speed measurements, the instantaneous speed measurement is rejected. Direction data (vector components) is instantaneous. When it asks the sensor for wind data, the sensor outputs the average speed and direction readings since last query and max wind speed instantaneous value for gust.

Vapor Pressure/Relative Humidity Sensor: Vapor pressure is measured every 60 seconds and records the instantaneous values.  When it asks the sensor for vapor pressure, the sensor outputs average since last query.

Rain Gauge: Water drops are counted continuously. Each drop is added to create an accumulated total. When it asks the sensor for precipitation data, the sensor outputs total accumulated rainfall (in mm) since last query.

Temperature: Air temperature is measured every 10 seconds and it records instantaneous values. When it queries the sensor for temperature sensor outputs average since last query.

Barometric Pressure Sensor: Barometric pressure is measured once every 60 seconds and records the instantaneous values. When queried, the sensor outputs the average of the instantaneous measurements since the last query.

Limitations:

• Snow and ice accumulation: The sensor is not heated and will not measure frozen precipitation. This can also affect solar radiation measurement and wind measurements.

• Heavy rain and strong wind: During strong storms, water splashes may affect wind measurements.

WeatherCub Installation Manual:Learn how to install and uninstall EarthScout in a field: WeatherCub Manual 2025

Battery Removal & Charging:
Reference the following PDF for instructions on how to remove and charge your EarthScout battery:  Battery Removal & Charging.PDF

More Questions?
Visit the EarthScout YouTube Page for videos about how to install EarthScout in a field, how to install the EarthScout app, and more! Or, contact us at 1 (877) 443-7632.

Register Your WeatherCub and Activate Your Warranty HERE

What Is Covered By This Warranty?
EarthScout warrants the EarthScout-branded product and the EarthScout-branded accessories contained in the original packaging (“EarthScout Product”) against defects in materials and workmanship when used normally in accordance with EarthScout’s published guidelines, and a period of THREE (3) YEARS from the date of original retail purchase by the end-user purchaser (“Warranty Period”). EarthScout’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.

What Is Not Covered By This Warranty?
This Warranty does not apply to any non-EarthScout branded hardware products or any software, even if packaged or sold with EarthScout hardware. Manufacturers, suppliers, or publishers, other than EarthScout, may provide their own warranties to you – please contact them for further information. Software distributed by EarthScout with or without the EarthScout brand (including, but not limited to system software) is not covered by this Warranty. Please refer to the licensing agreement accompanying the software for details of your rights with respect to its use. EarthScout does not warrant that the operation of the EarthScout Product will be uninterrupted or error-free. EarthScout is not responsible for damage arising from failure to follow instructions relating to the EarthScout Product’s use.

EarthScout Purchase Terms
When you purchase WeatherCub 1 there is a 3-year limited warranty.

Return Policy

EarthScout WeatherCub 1 has a 30 day return policy. The return policy is void if the plastic shrink wrap around any of the sensors are torn, removed, or there are signs of product use. The customer will be responsible for return shipping costs.
