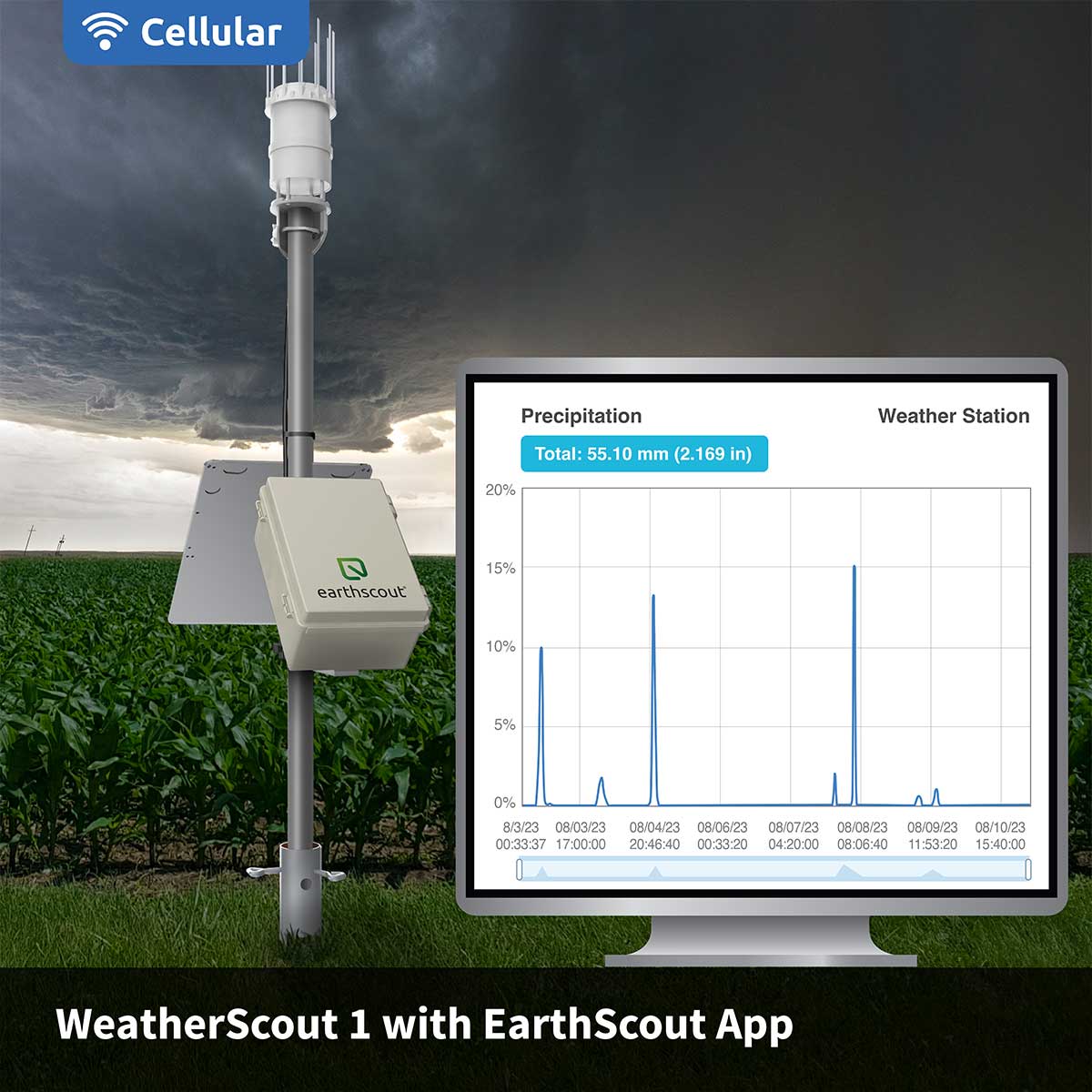

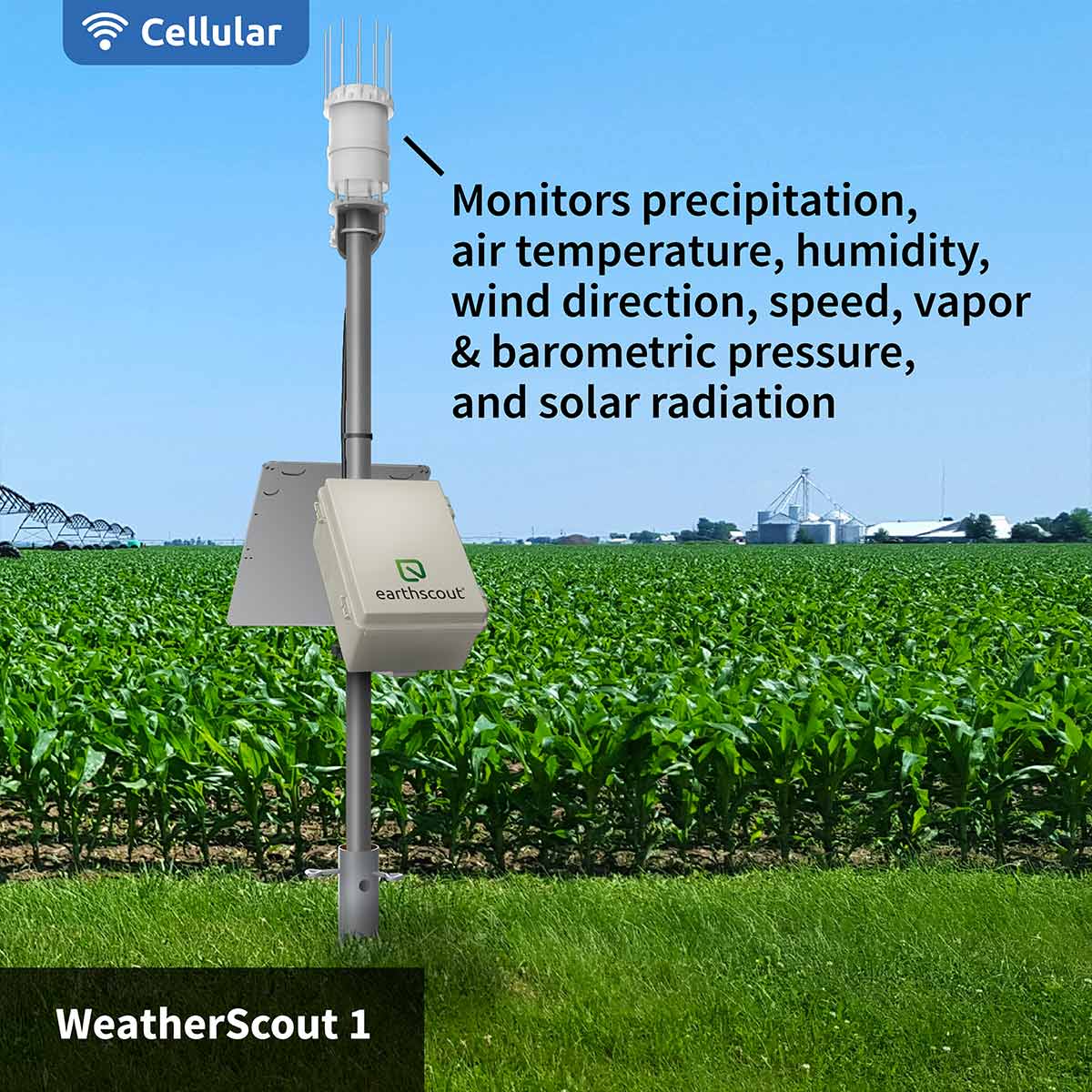

WeatherScout 1 Cellular Weather Station is loaded with benefits:

• Easy to install
• No moving parts
• All weather station data transmitted over a single wire

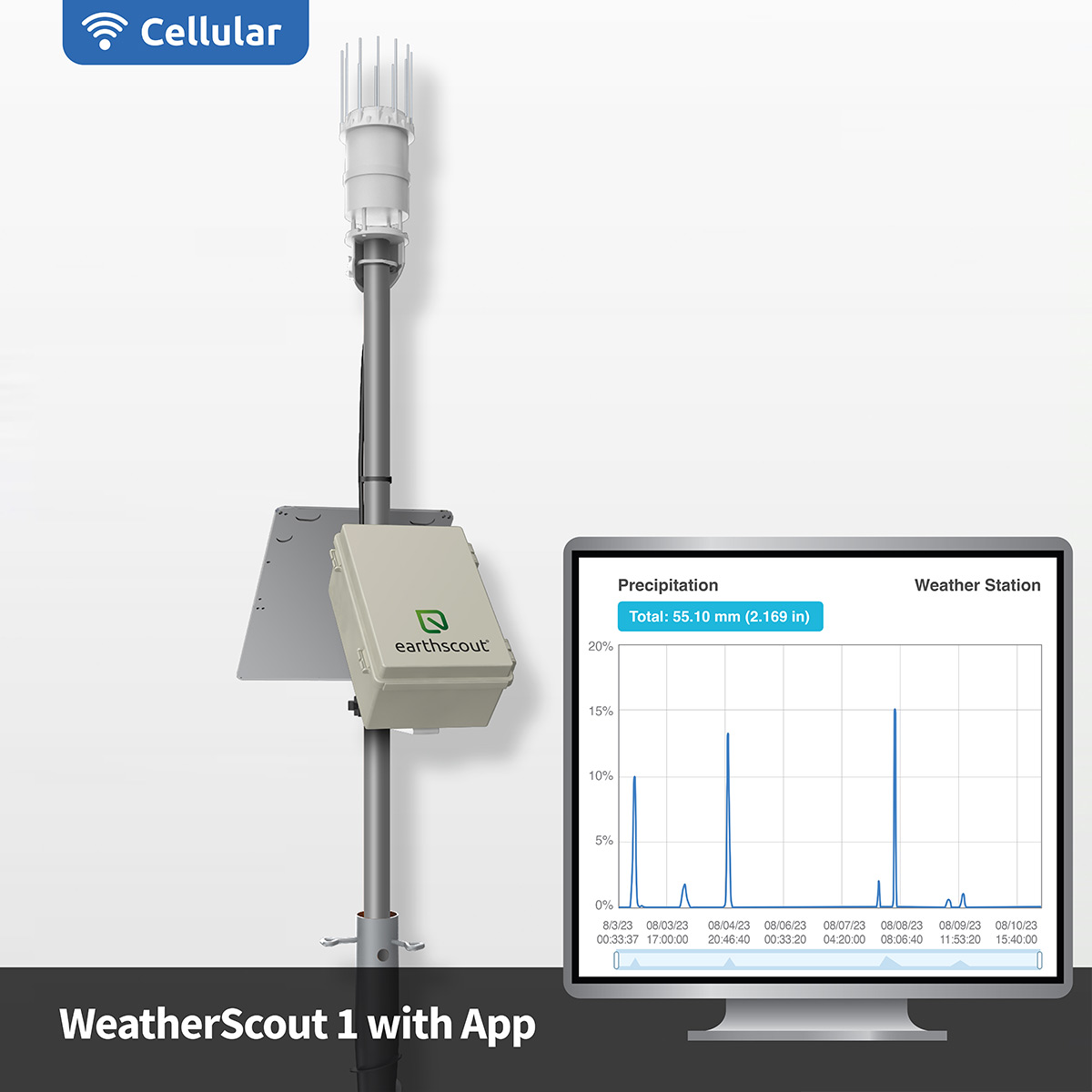

• Sends data to the EarthScout app
• Designed for continuous deployment in harsh climates
• No louvered radiation shield to attract bugs
• Accurate at low wind speeds because no moving parts will cause friction or fail
• Detects fine-scale wind speed variations with 0.01 m/s resolution
• Integrated weather station accelerometer detects if sensor is off-level
• Integrated spring acts as a rain gauge filter to keep out large particles but still allow enough water flow
• Data is stored inside the product as a backup in case of temporary outages
• 1-year limited warranty
• GPS

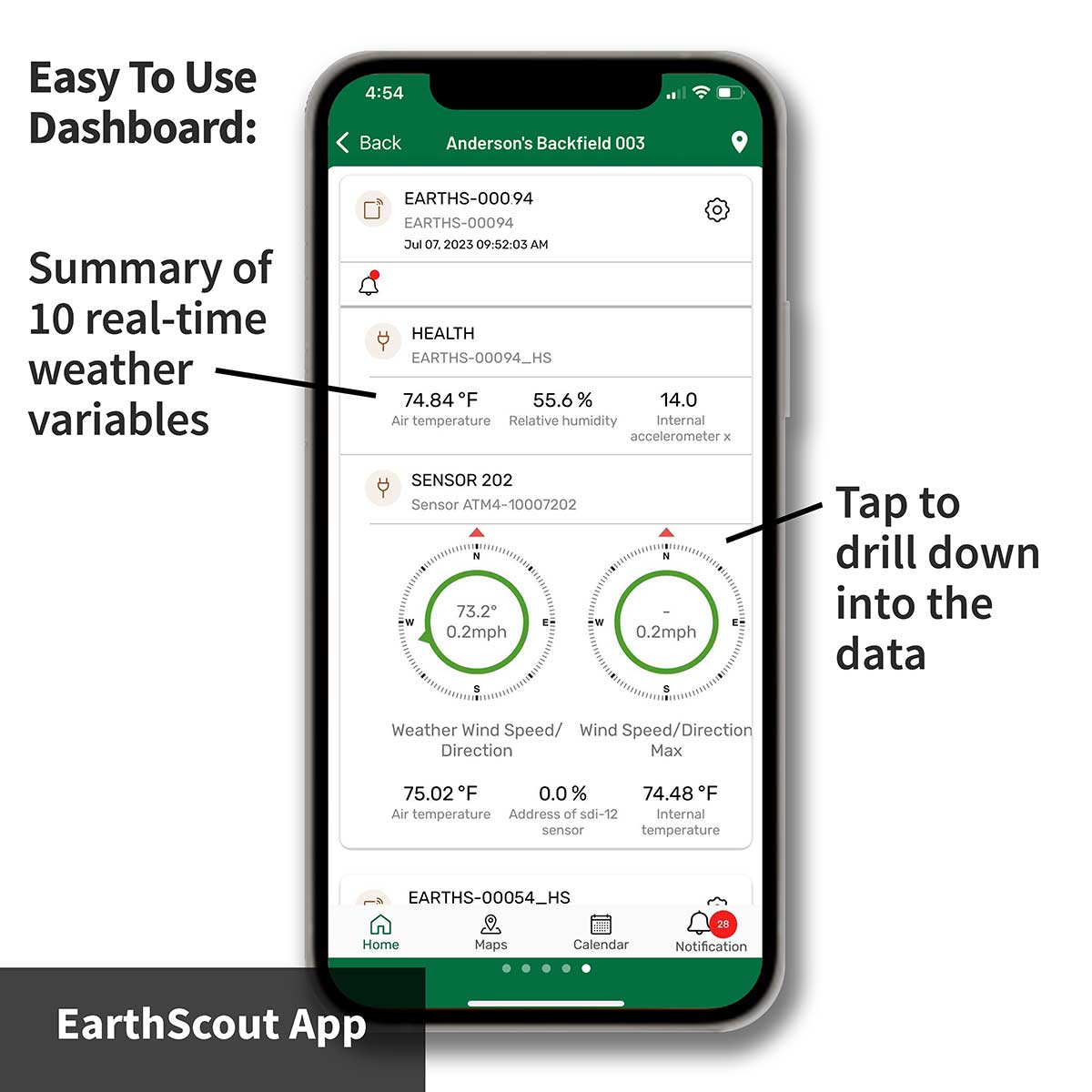

Monitors 10 weather variables:

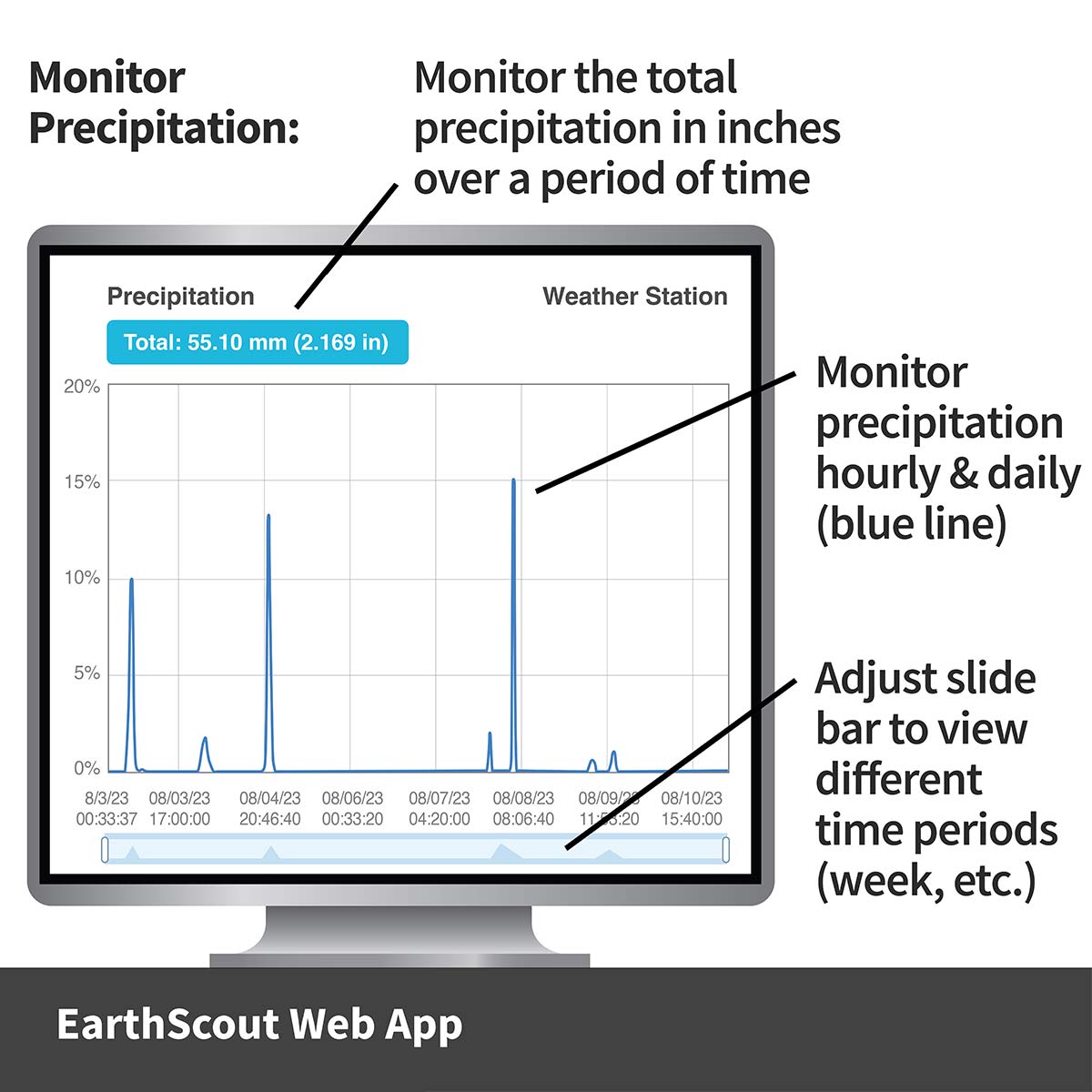

1. Precipitation
2. Wind Speed
3. Wind Direction
4. Air Temperature

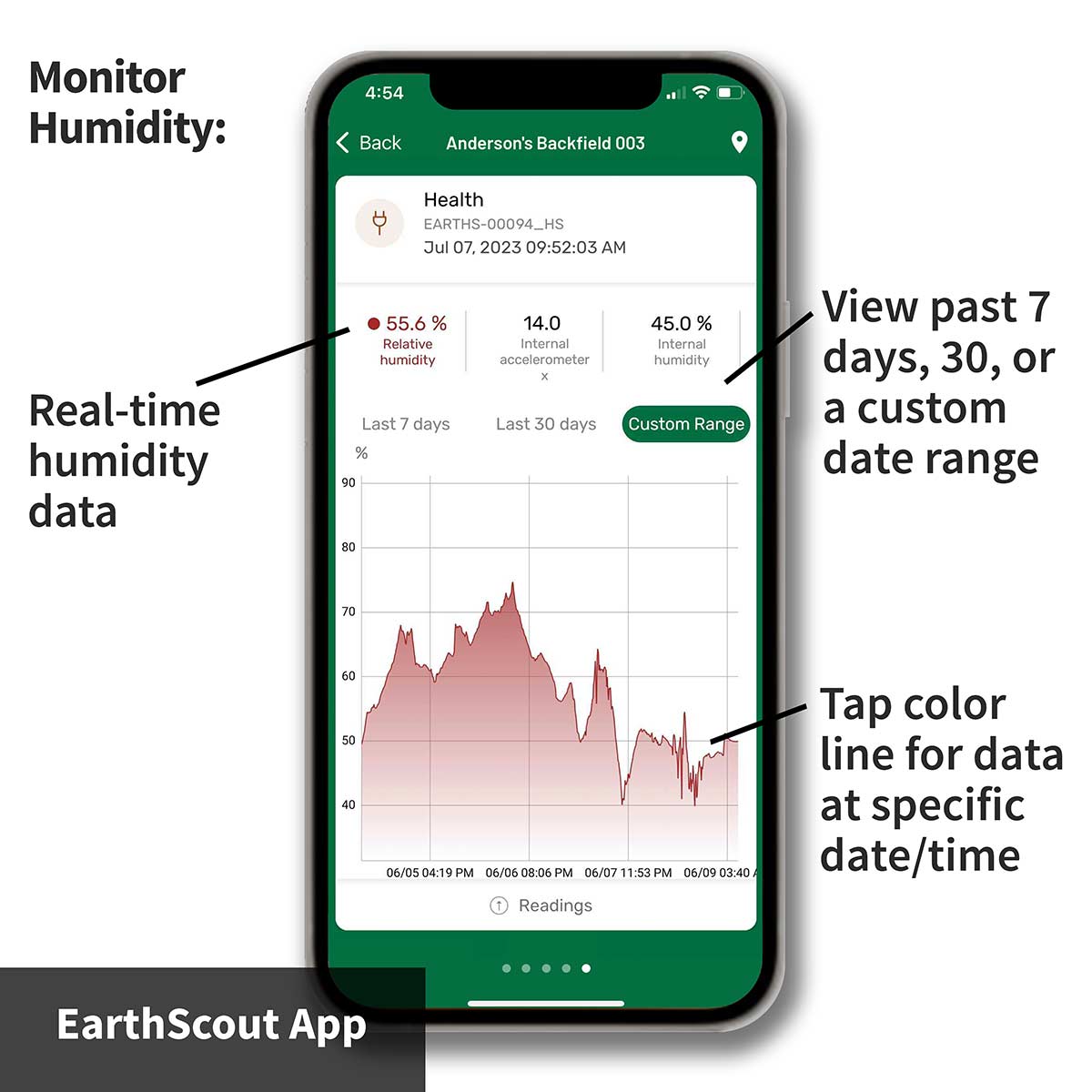

5. Relative Humidity
6. Solar Radiation
7. Vapor Pressure
8. Barometric Pressure

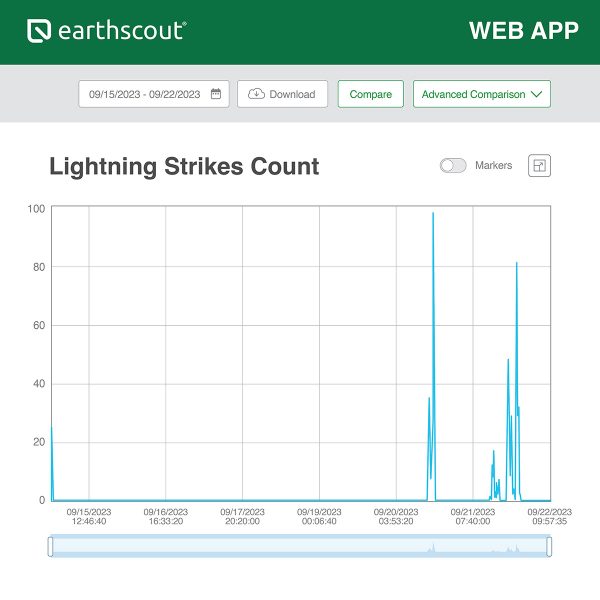

9. Lightning Strike Counter

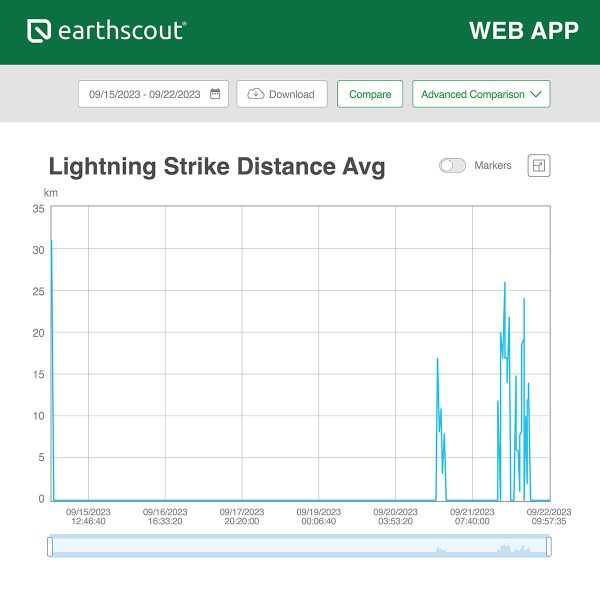

10. Lightning Strike Distance

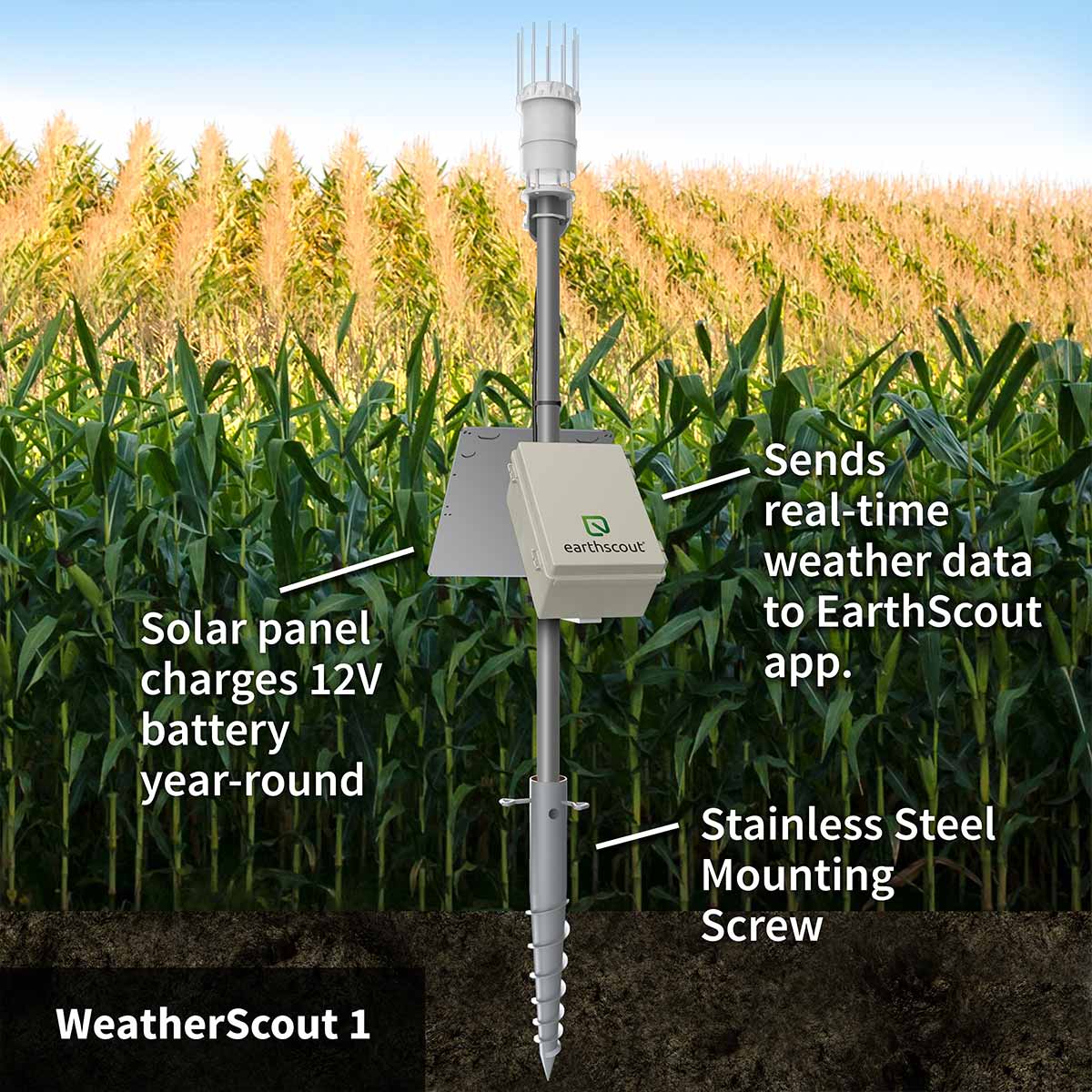

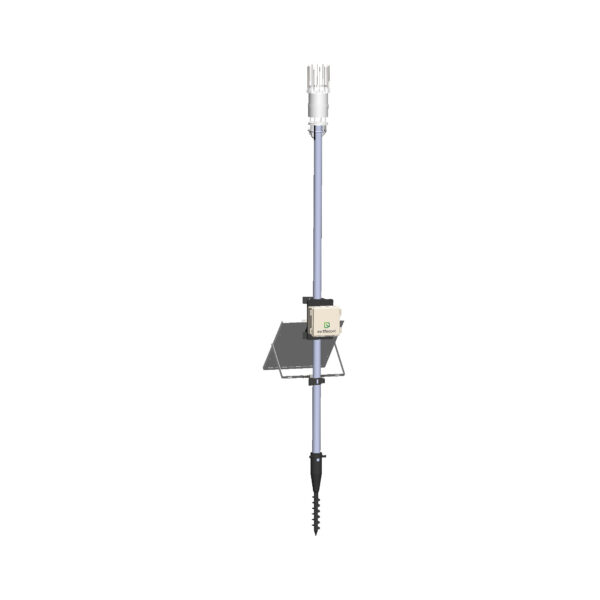

Dimensions:

• 8ft. galvanized pole (1 5/8” diameter). Weight: 3.75 to 7.5 lbs.
• After all parts assembled, overall dimensions are: 115.5” H, 27.5” W, 11” D.
• When installed in ground, height above ground is 97.5”

Weather Sensor Array:

• Weight: 2lbs
• Dimensions: 15”H x 4.75”W x 4.75”D with bird spikes. 11”H without bird spikes.
• Mounts on top of pole (1.25” to 2” diameter) with provided clamp.  ½” wrench required for tightening.
• 6ft cable protected with stainless steel braid connects to side of enclosure via a 90 deg M8 plug.

Ground screw:

• Weight: 5lbs
• Dimensions: 21.5” x 2.63” x 2.63”
• 1 5/8” diameter pole will insert 14.25” into ground screw.
• Ground screw inserts 18” into ground when installed.
• Includes 3 finger screws to secure and level pole.
• Screws into ground with provided rebar handle.

Solar Panel:

• 17W, 18V
• Weight: 2lbs
• Dimensions: 15.5” x 10.8” x 0.2”
• Comes with bracket to mount to pole at 45 degree angle.
• Comes with adjustable rubber clamps.
• 10” Cable protected with stainless steel braid and connects to side of enclosure via a 5.5 x 2.1mm adapter plug.

Enclosure:

• Type 4X polycarbonate water & corrosion resistant (non-submersible), UV rated case
• Dimensions: 12.25” x 8.75” x 5.25”
• Weight: (with components and bracket) approx. 20 lbs
• Comes with black powder coated steel bracket to mount on pole at 45 degree angle
• Comes with black powder coated aluminum clamps to mount to 1.5” to 1 5/8” pole

12V battery:

• Located within enclosure.  Maintains longevity of use in the field.
• 12V 14AH sealed lead acid rechargeable battery.
• Rechargeable via the solar panel or optional external 120VAC to 15VDC adapter which connects to side of enclosure via a 5.5×2.1mm plug.
• Weight: 9.2lbs
• Dimensions: 3.7”H x 5.94”L x 3.86”W

Charge Controller:

• Located within enclosure on the inside of the door.  Regulates charging voltage to the 12V battery.

Each internal sensor has its own measurements and data processing schedules:

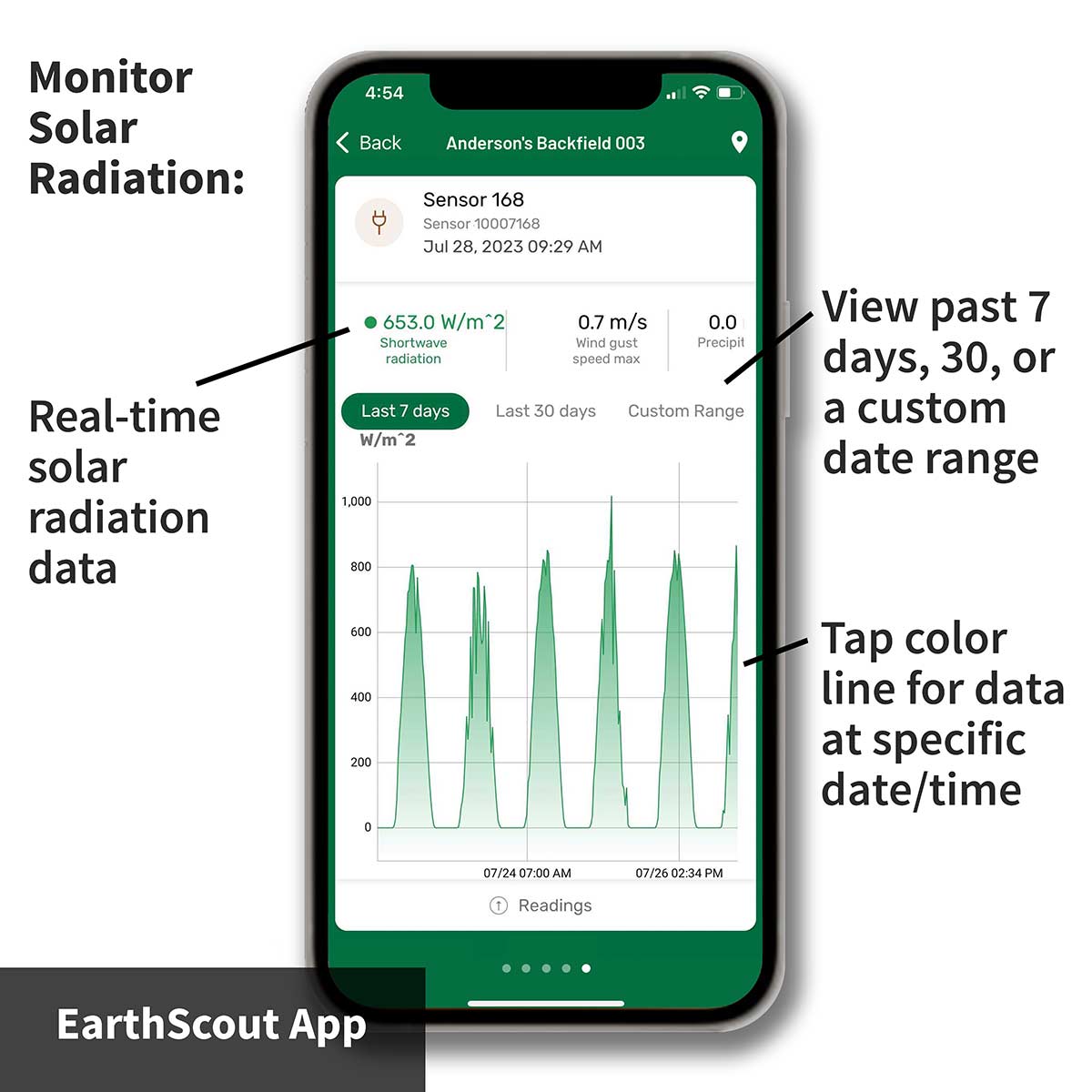

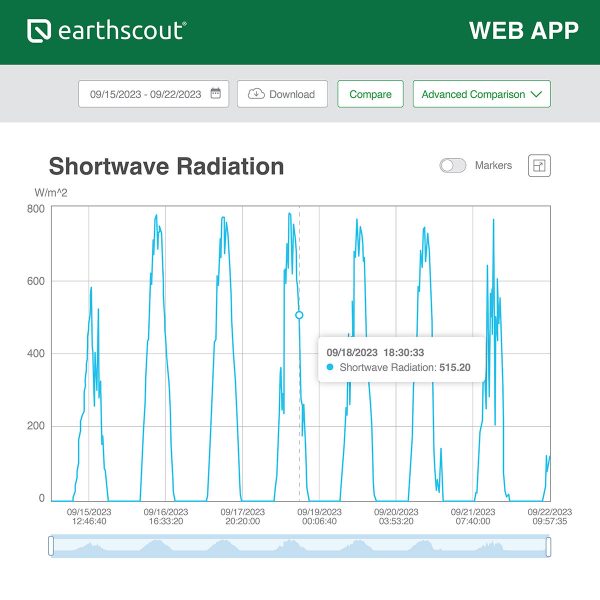

Pyranometer: Solar radiation is measured every 10 seconds and records instantaneous values. When Scout asks the sensor for solar radiation data, the sensor outputs the average of the instantaneous values since last query.

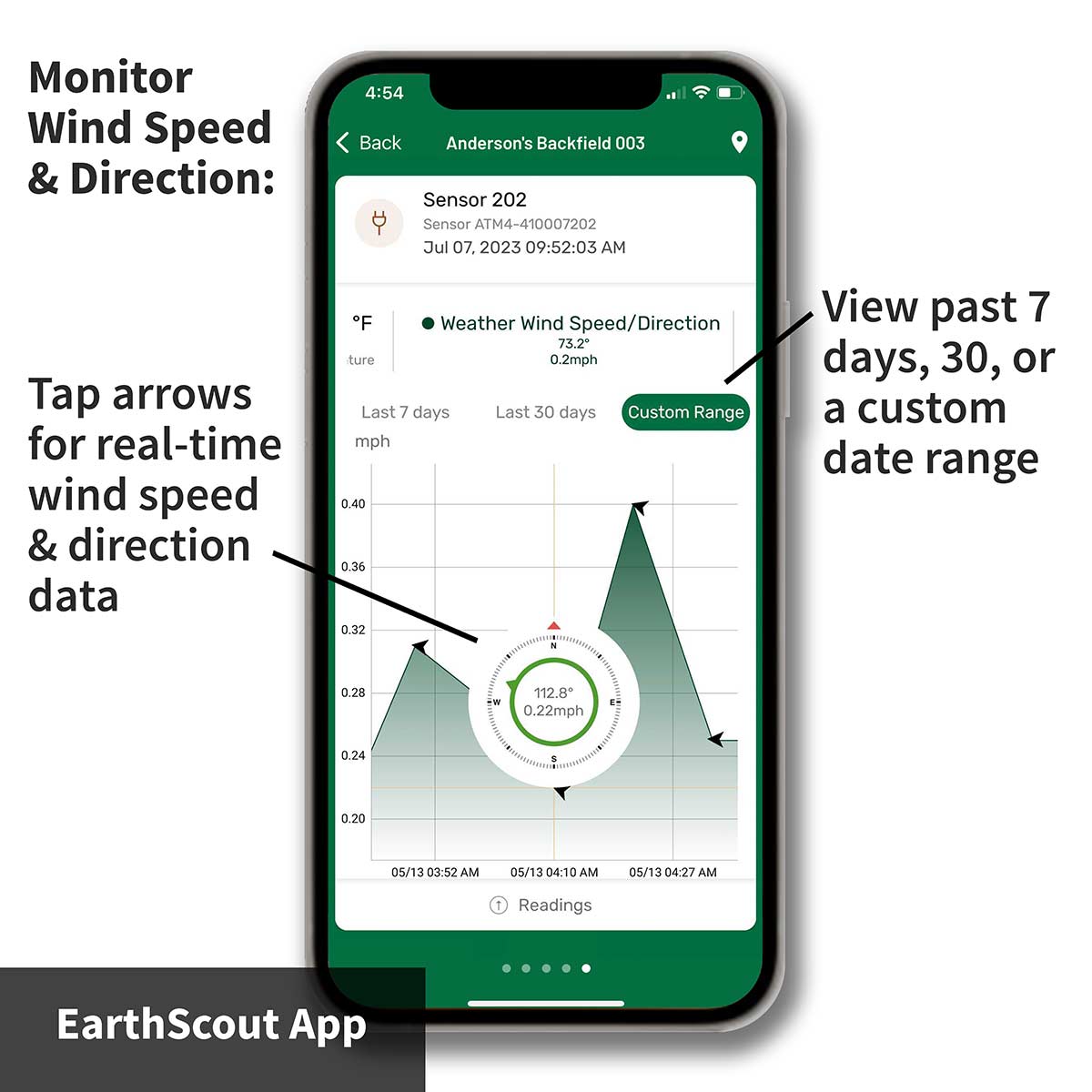

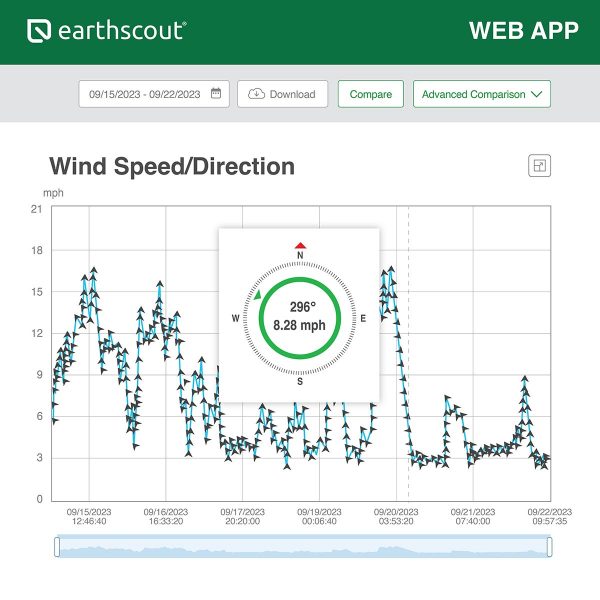

Anemometer: Wind speed and direction are measured every 10 seconds and it keeps a running average of the last 10 speed measurements, the instantaneous speed measurement is rejected. Direction data (vector components) is instantaneous. When Scout asks the sensor for wind data, the sensor outputs the average speed and direction readings since last query and max wind speed instantaneous value for gust.

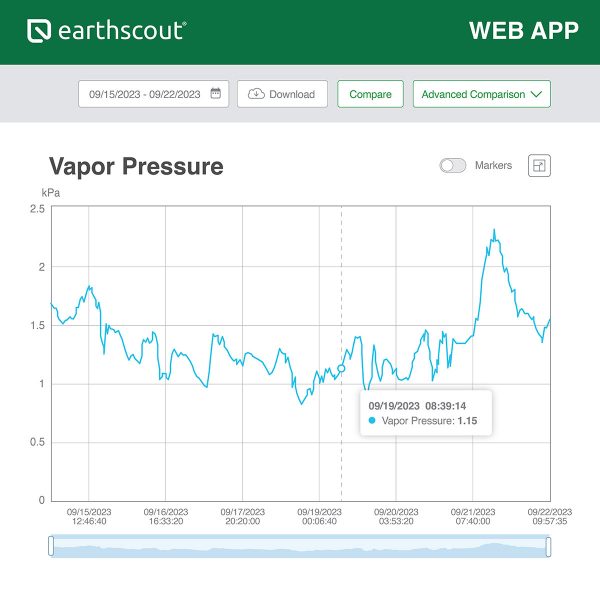

Vapor Pressure/Relative Humidity Sensor: Vapor pressure is measured every 60 seconds and records the instantaneous values.  When Scout asks the sensor for vapor pressure, the sensor outputs average since last query.

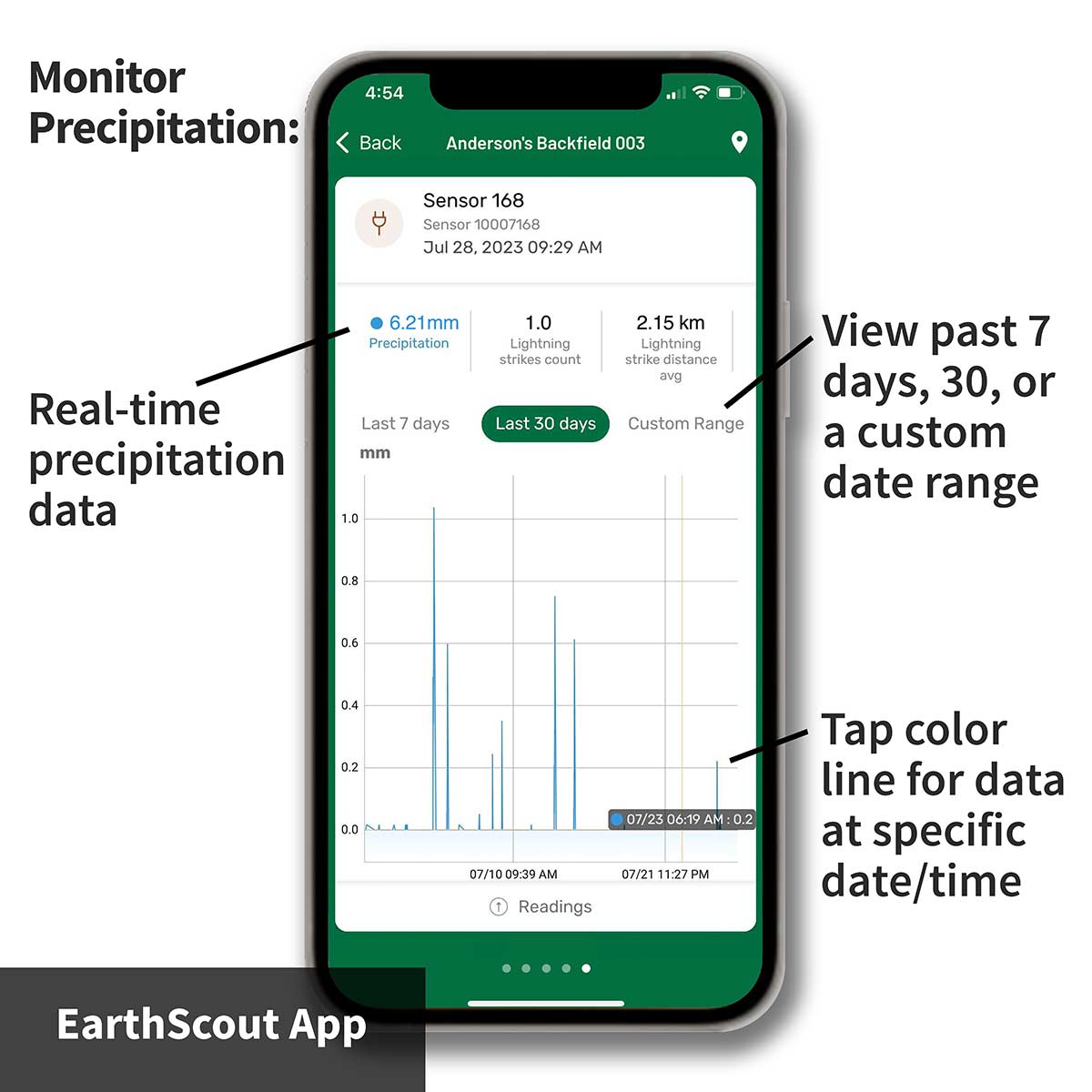

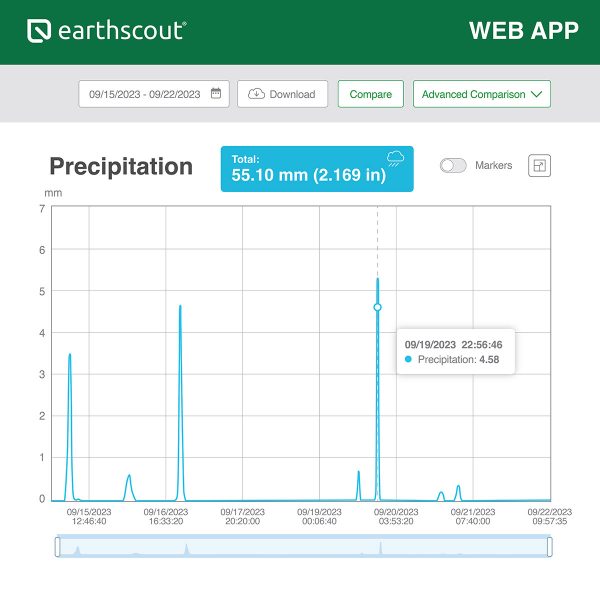

Rain Gauge: Water drops are counted continuously. Each drop is added to create an accumulated total. When WeatherScout asks the sensor for precipitation data, the sensor outputs total accumulated rainfall (in mm) since last query.

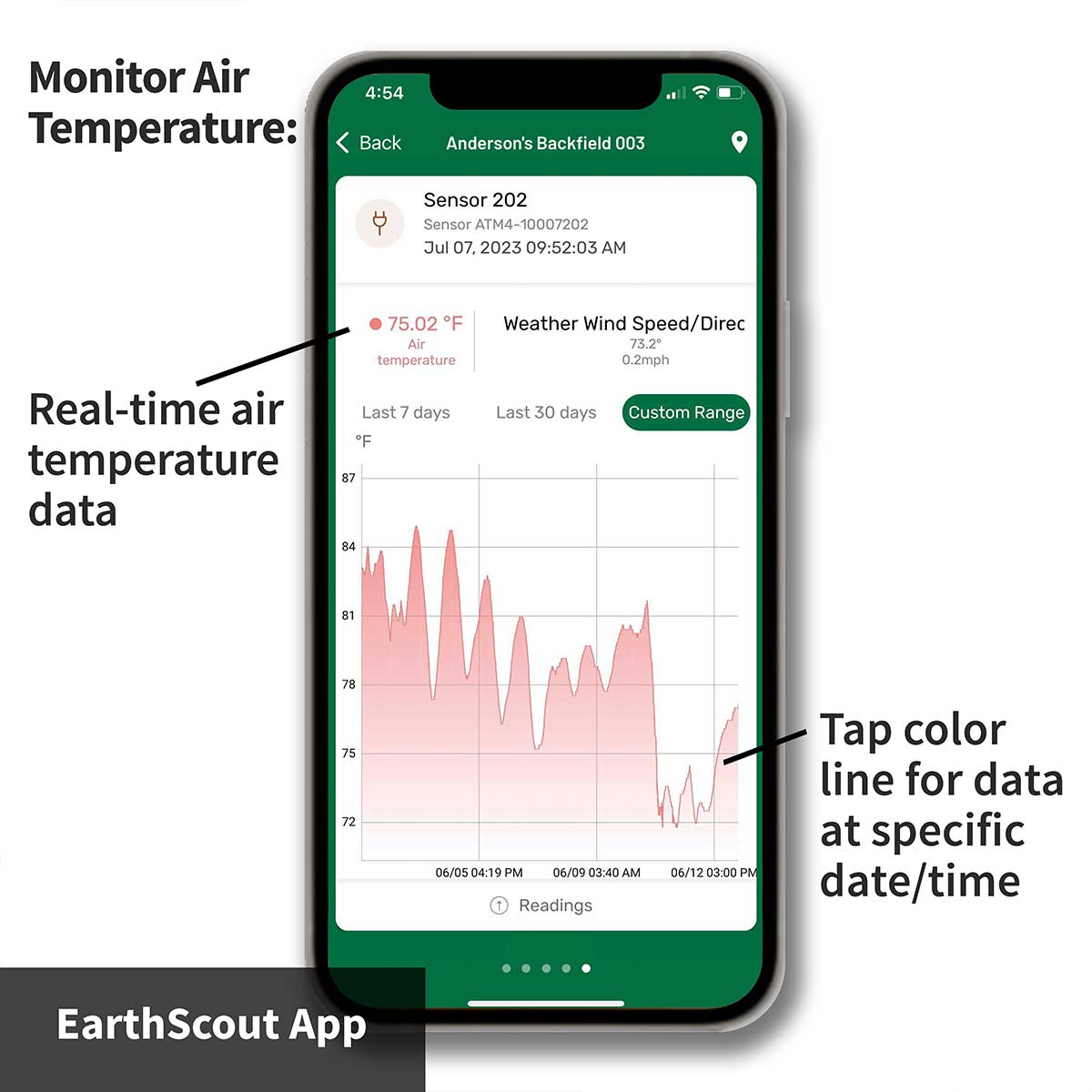

Temperature: Air temperature is measured every 10 seconds and it records instantaneous values. When WeatherScout queries the sensor for temperature sensor outputs average since last query.

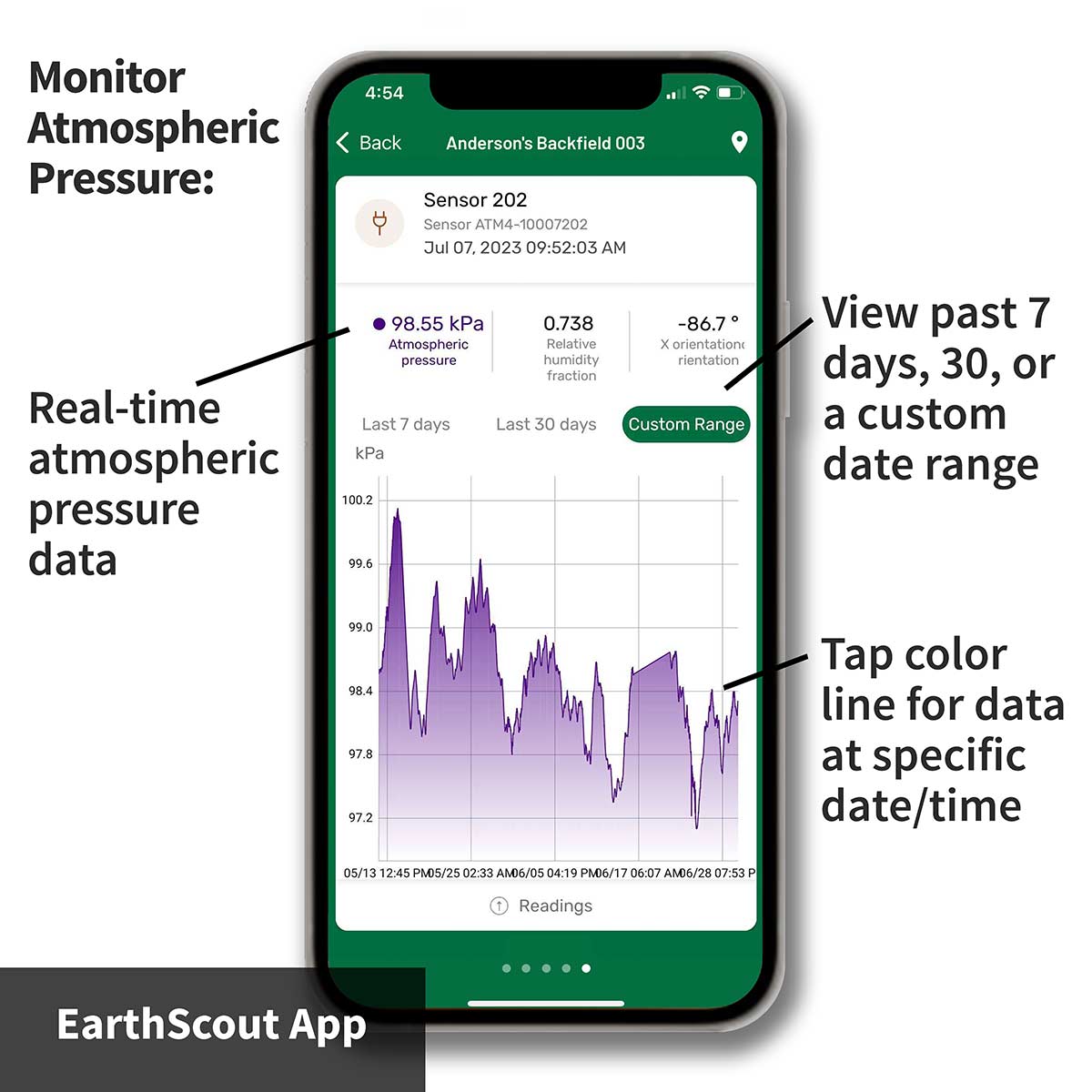

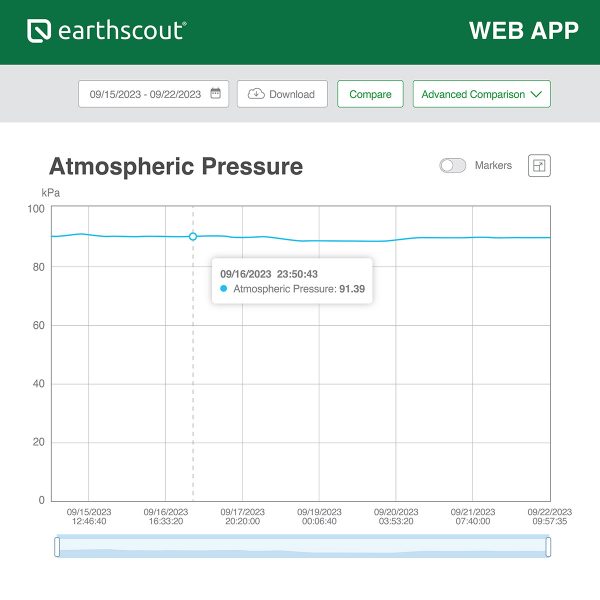

Barometric Pressure Sensor: Barometric pressure is measured once every 60 seconds and records the instantaneous values. When queried, the sensor outputs the average of the instantaneous measurements since the last query.

Limitations:

• Snow and ice accumulation: The sensor is not heated and will not measure frozen precipitation. This can also affect solar radiation measurement and wind measurements.
• Heavy rain and strong wind: During strong storms, water splashes may affect wind measurements.
