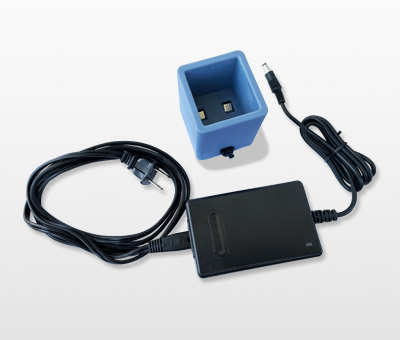

Battery Charger
This charger is compatible with most EarthScout products and batteries. The green LED light on the charger comes on when the battery charge gets to 4.2V.
Features:
- Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
- Universal AC input/Full range
- 2 pole AC Inlet IEC320-C8
- Class II power (without earth pin)
- No load power consumption <1.0W
- Constant current and voltage (CC, CV mode)
- Suitable for continue load
- For high surge current equipment
- Protections: Short circuit/Overload/Over voltage/ Over temp
- 2 colors LED indicate for charging status
- Fully enclosed plastic case.
- Highly reliability
- Approvals UL/CUL/TUV/EAC/CB/FCC/CE
Specifications:
16.8 ~ 30W Power Adaptor with Charging Function
Dimensions: 108*67*36mm (L*W*H)
Plug: Standard type P1J: 2.1ψ* 5.5ψ* 11mm, tuning fork type center positive for stock
Cable: Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock
